R-1Elite
| FRAME | ||
 |
型號 | R-1 |
 |
尺寸 | 41,45,47,50,53,56,59 cm |
 |
顏色 | 消光黑粉, 消光黑藍, 湖水綠, 天空藍 |
 |
車架 | T700 Carbon |
 |
前叉 | T700 Carbon |

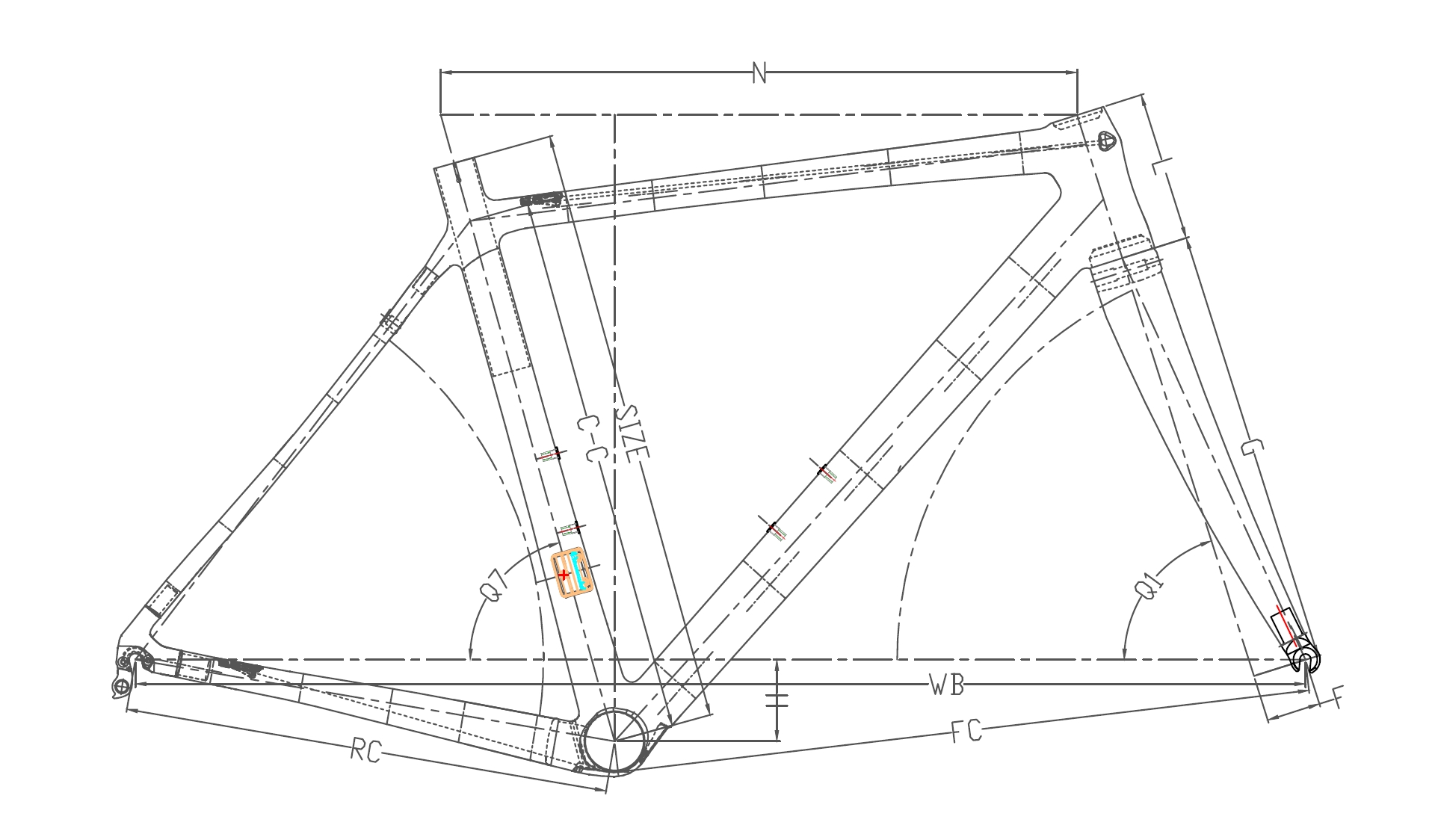

| Frame size(mm) | ST | N | L | F | H | RC | WB | Stack | Reach | Q1 | Q7 |
| 410 | 410 | 495 | 100 | 45 | 68 | 405 | 964 | 491 | 368 | 70.5 ° | 75.5 ° |
| 450 | 450 | 505 | 100 | 45 | 68 | 405 | 964 | 494 | 377 | 71.75 ° | 75.5 ° |
| 470 | 470 | 515 | 110 | 45 | 68 | 405 | 970 | 507 | 384 | 72.25 ° | 75.5 ° |
| 500 | 500 | 530 | 125 | 45 | 68 | 405 | 975 | 522 | 385 | 72.5 ° | 74.5 ° |
| 530 | 530 | 545 | 140 | 45 | 68 | 408 | 981 | 537 | 386 | 72.75 ° | 73.5 ° |
| 560 | 560 | 565 | 160 | 45 | 68 | 408 | 989 | 557 | 395 | 73 ° | 73 ° |
| 590 | 590 | 585 | 180 | 45 | 68 | 410 | 1010 | 578 | 405 | 73.25 ° | 72.75 ° |
