車款介紹

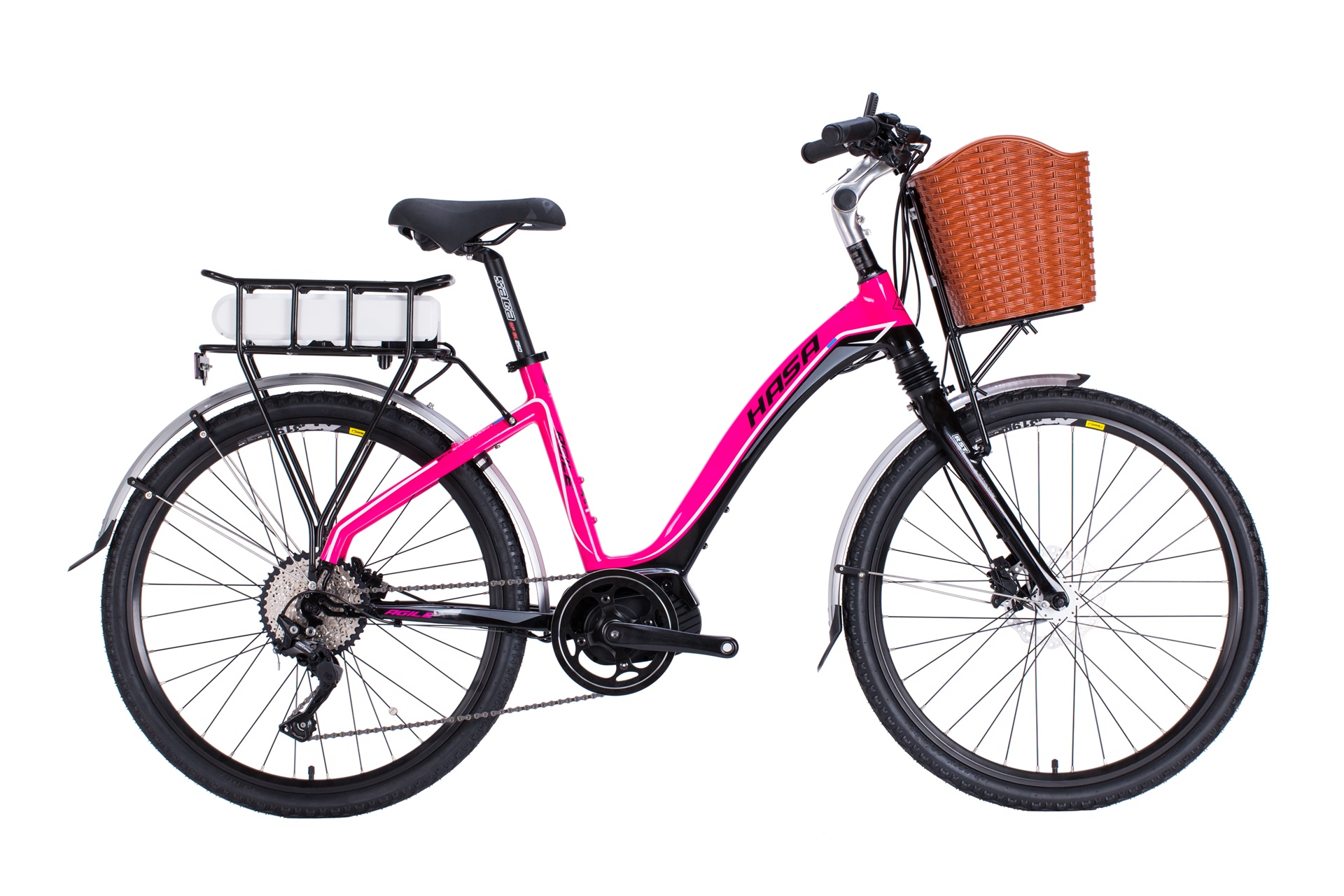

proimages/icon/Model.png 型號 AGILE
proimages/icon/SP.png 速別 10SPD
proimages/icon/Size.png 尺寸 15, 17inch(C-T)
proimages/icon/Color.png 顏色 Green&White, Pink&Black
規格配置
proimages/icon/Frame.png 馬達 BAFANG MM G360 200W(incloud B.B Parts, C/Wheel)
proimages/icon/Frame.png 儀錶板 3 Speed PAS
proimages/icon/Frame.png 電池 LG LI-ION BATTERY 36V 12.8Ah
proimages/icon/Frame.png 車架 Aluminum 6061 TAPERED
proimages/icon/Fork.png 前叉 RST ALLOY FORK SUSPENSION(26"),  W/DISC EMD
proimages/icon/HP.png 頭碗組 SAGA Inetegrated 1-1/8" - 1-1/2''
proimages/icon/BBP.png 中軸 BAFANG
proimages/icon/S-Pin.png 零配件 SAGA Alloy
proimages/icon/Shifter-R.png 變速把手 SHIMANO DEORE 10SPD
proimages/icon/FDerailleur.png 前變速器 NIL
proimages/icon/RDerailleur.png 後變速器 SHIMANO DEORE
proimages/icon/CWheel.png 齒盤 BAFANG 44T
proimages/icon/Freewheel.png 飛輪 SHIMANO DEORE CS-HG50 11-42T
proimages/icon/Chain.png 鍊條 KMC X10-E
proimages/icon/Rim.png 輪組 26'' Alloy Double wall 32H
proimages/icon/Hub.png 花轂 JOYTECH Alloy Black 32H
proimages/icon/Spokes.png 鋼絲 Steel ED Black
proimages/icon/Tire.png 外胎 KENDA 26*1.75
proimages/icon/Saddle.png 坐墊 Sportourer
proimages/icon/Stem.png 豎管 SAGA Alloy
proimages/icon/Hbar.png 把手 SAGA Alloy
proimages/icon/seatpost.png 座管 SAGA Alloy
proimages/icon/Brake.png 夾器 SHIMANO BR-M315 W/160mm Rotor
proimages/icon/Shifter-R.png 煞車把手 SHIMANO BL-M315
proimages/icon/Weight.png 重量 21.26kg
proimages/icon/price.png 建議售價 NT$46000
proimages/Mountain_Bike/GALLANT-SIZE.jpg
Frame size Top tube(A) Head tube length(B) Fork length(C) Head tube angle(D) Bottom bracket drop(E) Chain stays(F) Seat tube angle(G) Seat tube(H) Stack Reach
15" 565.7mm 120mm 434.8mm 69° 45.1mm 460mm 73° 382mm 547.4mm 398.3mm
17" 565.7mm 120mm 434.8mm 69° 45.1mm 460mm 73° 432.9mm 547.4mm 398.3mm
