R-1
.png "R-1")
| FRAME | ||
 |
Model | R-1 |
 |
Size | XXS, XS, S, M, L, XL |
 |
Color | Matte Black&White, Black&Pink, Turquoise |
 |
Frame | M40 Carbon |
 |
Fork | M40 Carbon |

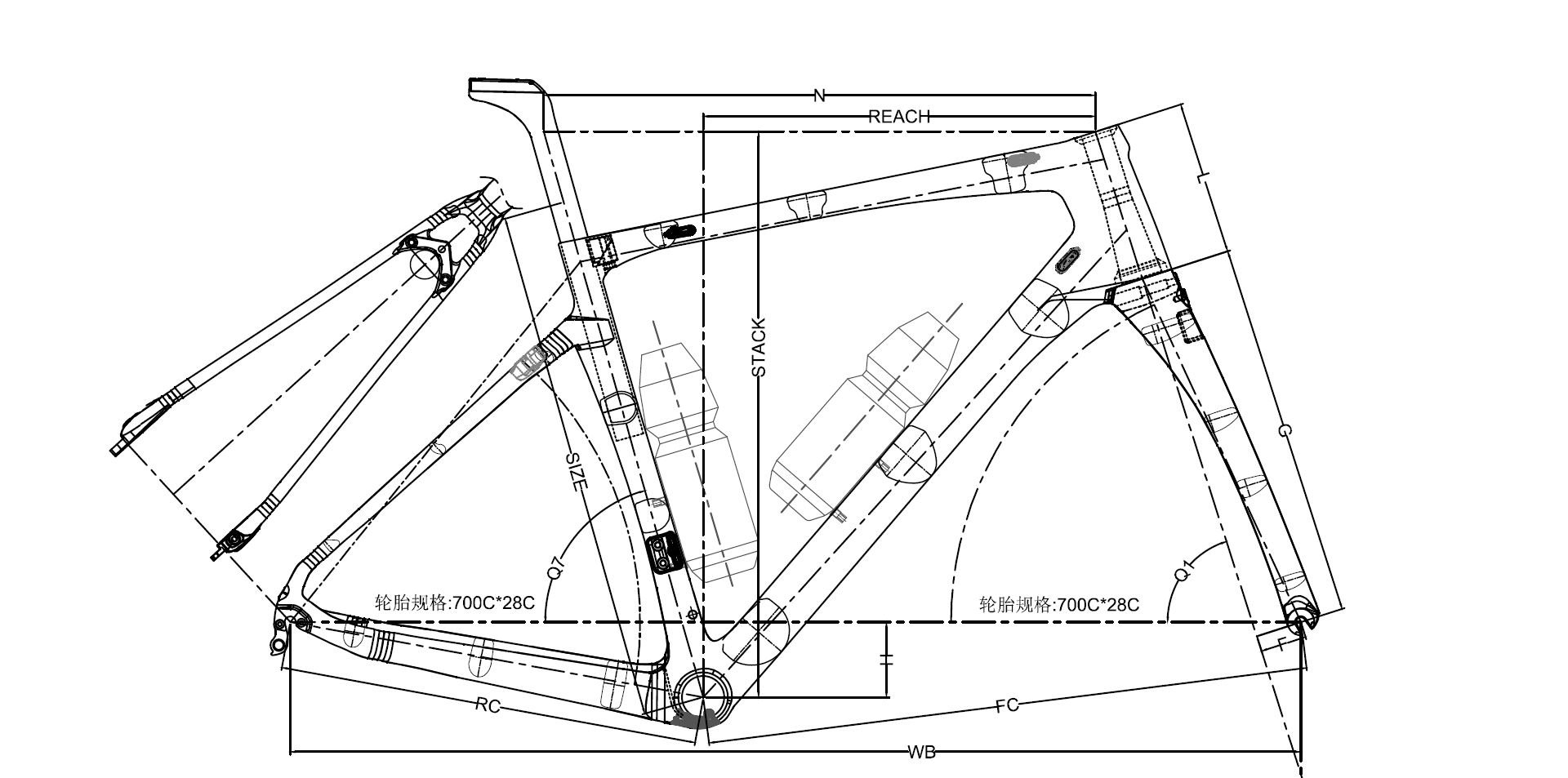

| Frame size | C-T | N | Stack | Reach | RC | H | G | F | WB | L | FC | Q1 | Q7 |
| XXS | 403 | 504 | 512 | 372.5 | 408 | 75 | 365 | 45 | 965 | 110 | 568.9 | 71.75 | 75.6 |
| XS | 433 | 517.5 | 530 | 376.5 | 408 | 73 | 365 | 45 | 973.7 | 130 | 576.9 | 72 | 75.1 |
| S | 463 | 536 | 550 | 381 | 408 | 73 | 365 | 45 | 982.3 | 150 | 585.4 | 72.25 | 74.25 |
| M | 493 | 550.7 | 569 | 385 | 408 | 71 | 365 | 45 | 988.4 | 170 | 590.9 | 72.75 | 73.75 |
| L | 523 | 568.1 | 589 | 391 | 408 | 71 | 365 | 45 | 998.1 | 190 | 600.5 | 73 | 73.25 |
| XL | 553 | 585 | 607 | 396.5 | 408 | 69 | 365 | 45 | 1007.5 | 210 | 609.3 | 73.25 | 72.75 |
