GALLANT1.0

GALLANT1.0
GALLANT1.0
GALLANT1.0
FRAME

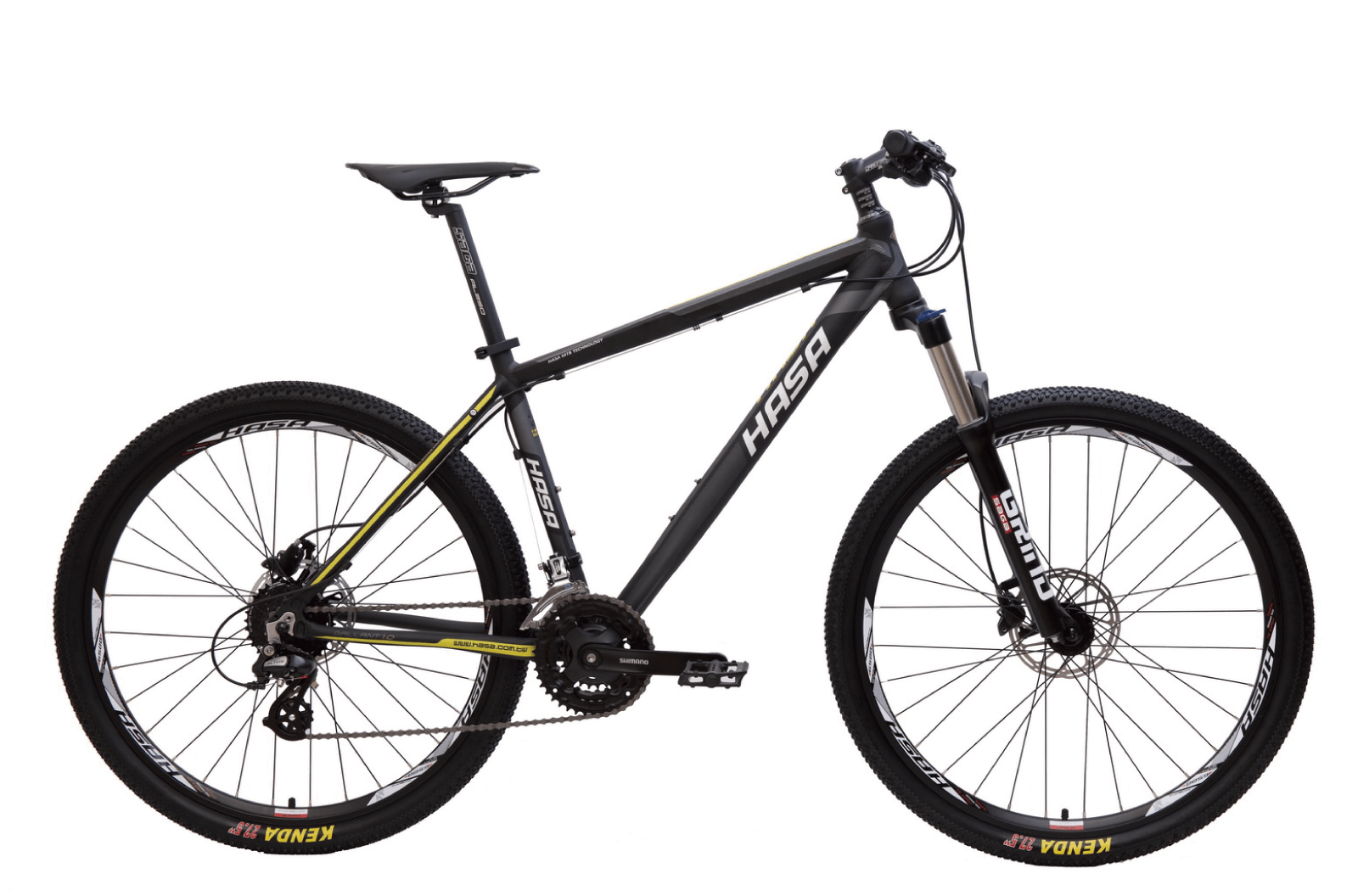

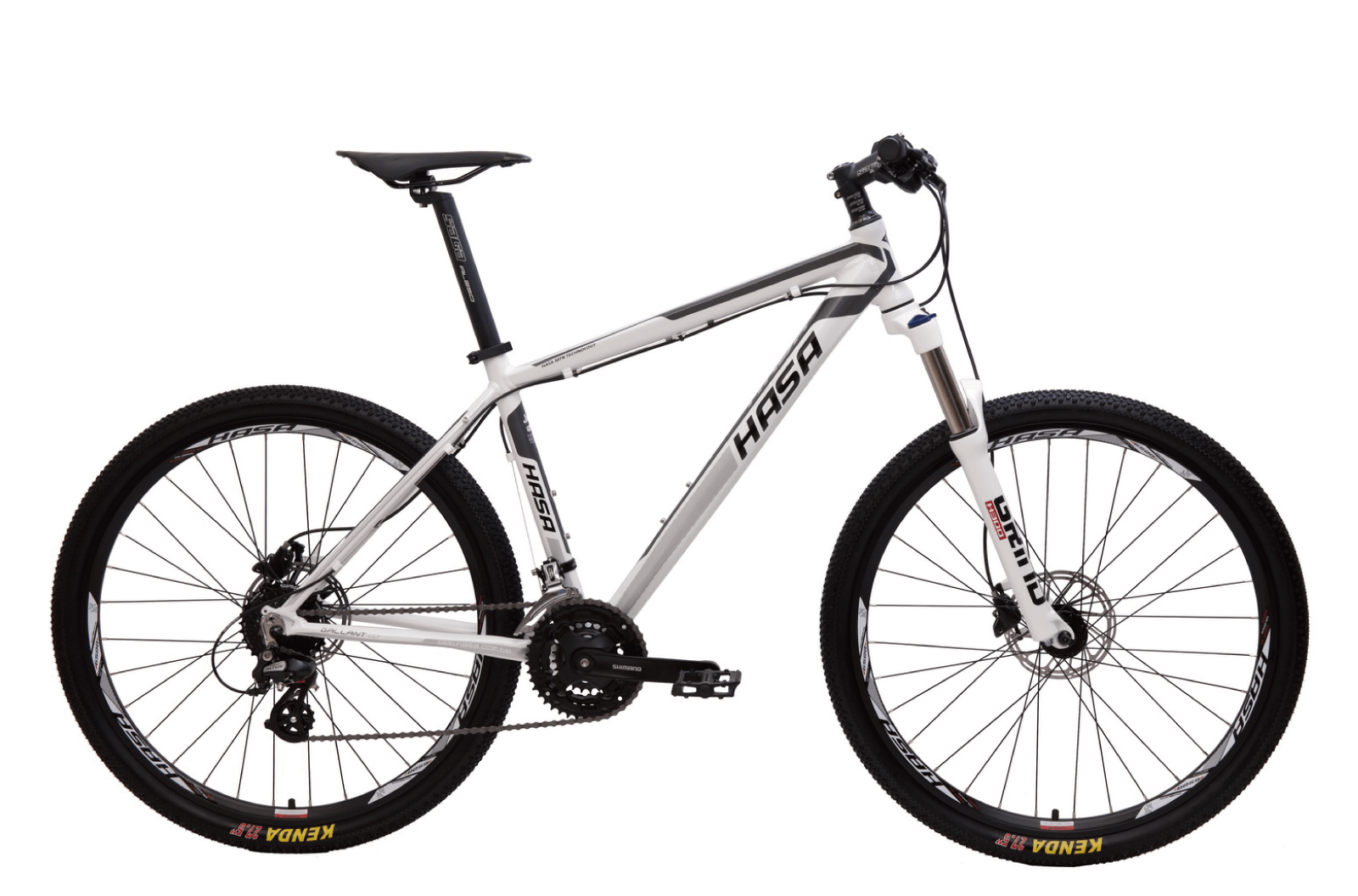

proimages/icon/Model.png Model GALLANT 1.0
proimages/icon/SP.png SP 24SPD
proimages/icon/Size.png Size 15'',17'',19'',21''
proimages/icon/Color.png Color White&Silver / Matte Gray&Yellow / Black&Silver
SHIFTER SYSTEM
proimages/icon/Frame.png Frame Aluminum 6061
proimages/icon/Fork.png Fork Zoom 565 (650B) W/ Lock out
proimages/icon/HP.png Head Parts SAGA Inetegrated 1-1/8"
proimages/icon/BBP.png B.B Parts NECO 910P Cartridge Type
proimages/icon/S-Pin.png S./Pin Alloy Sand Black
proimages/icon/Shifter-R.png Shifter SHIMANO ALTUS SL-M310 24SPD
proimages/icon/FDerailleur.png F/Derailleur SHIMANO Tourney FD-TY700
proimages/icon/RDerailleur.png R/Derailleur SHIMANO ACERA RD-M360
proimages/icon/CWheel.png C/Wheel SHIMANO Tourney FC-TY301 42-34-24T
proimages/icon/Freewheel.png Freewheel SHIMANO Tourney CS-HG-200 12-32T
proimages/icon/Chain.png Chain KMC Z7
proimages/icon/Rim.png Rim 650B Alloy Black 32H
proimages/icon/Hub.png Hub JOYTECH Alloy Black 32H
proimages/icon/Spokes.png Spokes Steel ED Black
proimages/icon/Tire.png Tire ARISUN 27.5''*1.95
proimages/icon/Saddle.png Saddle DDK
proimages/icon/Stem.png Stem SAGA Alloy Sand Black
proimages/icon/Hbar.png H/BAR SAGA Alloy Sand Black
proimages/icon/seatpost.png Seatpost SAGA Alloy Sand Black
proimages/icon/Brake.png Brake C-STAR W/160mm Rotor
proimages/icon/Shifter-R.png B/Lever C-STAR BL-551
proimages/icon/Weight.png Weight 13.6kg
proimages/Mountain_Bike/GALLANT-SIZE.jpg
Frame size Top tube(A) Head tube length(B) Fork length(C) Head tube angle(D) Bottom bracket drop(E) Chain stays(F) Seat tube angle(G) Seat tube(H)
15" 548mm 130mm 446mm 71° 40mm 425mm 67.7° 381mm
17" 563.1mm 130mm 446mm 71° 40mm 425mm 67.7° 432mm
19" 578mm 130mm 446mm 71° 40mm 425mm 67.7° 483mm
15" 592.8mm 140mm 446mm 71° 40mm 425mm 67.7° 533mm
