F-2
.jpg "F-2")
| FRAME | ||
 |
Model | F-2 |
 |
SP | 16SPD |
 |
Size | 14" |
 |
Color | White, Black, Yellow |
| SHIFTER SYSTEM | ||
|---|---|---|
 |
Frame | Aluminum |
 |
Fork | Aluminum |
 |
Head Parts | SAGA Inetegrated 1-1/8" |
 |
B.B Parts | Cartridge Type |
 |
S./Pin | Alloy Sand Black |
 |
Shifter | SHIMANO CLARIS 2*8SPD |
 |
F/Derailleur | SHIMANO CLARIS |
 |
R/Derailleur | SHIMANO CLARIS |
 |
C/Wheel | SAGA Alloy 53-39T |
 |
Freewheel | SHIMANO CS-HG200 11-32T |
 |
Chain | KMC Z7 |
 |
Rim | 20" Alloy 28H |
 |
Hub | Alloy Black F-24H/R-28H |
 |
Spokes | Steel ED Black |
 |
Tire | Kenda 20''*1.5 |
 |
Saddle | SAGA |
 |
Stem | SAGA Alloy Sand Black |
 |
H/BAR | SAGA Alloy Sand Black |
 |
Seatpost | SAGA Alloy Sand Black |
 |
Brake | JAK-5 DISC BRAKE |
|
B/Lever | JAK L-11SB |
 |
Weight | 12.6kg |

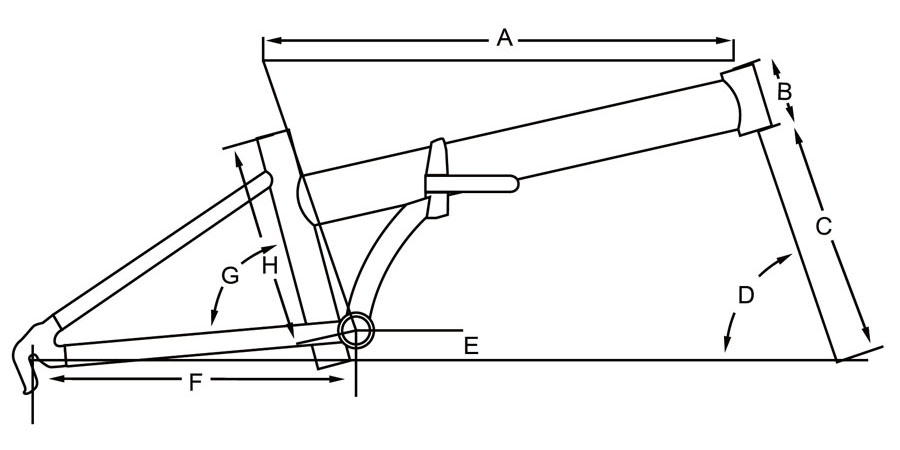

| Frame size | Top tube(A) | Head tube length(B) | Fork length(C) | Head tube angle(D) | Bottom bracket drop(E) | Chain stays(F) | Seat tube angle(G) | Seat tube(H) |
| 14" | 558mm | 85mm | 300mm | 71° | 30mm | 406mm | 78.8° | 358mm |
